YCZ-JT120-M320

Ultrafiltration Water Purifier

The household ultrafiltration water purifier has a filtration precision of 0.01 micrometers.
Quote NowGet Catalog
Share:

Product Description

It can intercept bacteria and impurities, retain beneficial minerals, and is compact, energy-efficient, safeguarding the healthy water use of the whole family.

Technical Specifications & Models



Inlet and outlet a quarter inch Product water flow 2.0L/min,Max 3.0L/min
Inlet pressure 0.1-0.4MPa Applicable water temperature 41-100˚F/5˚c-38˚c

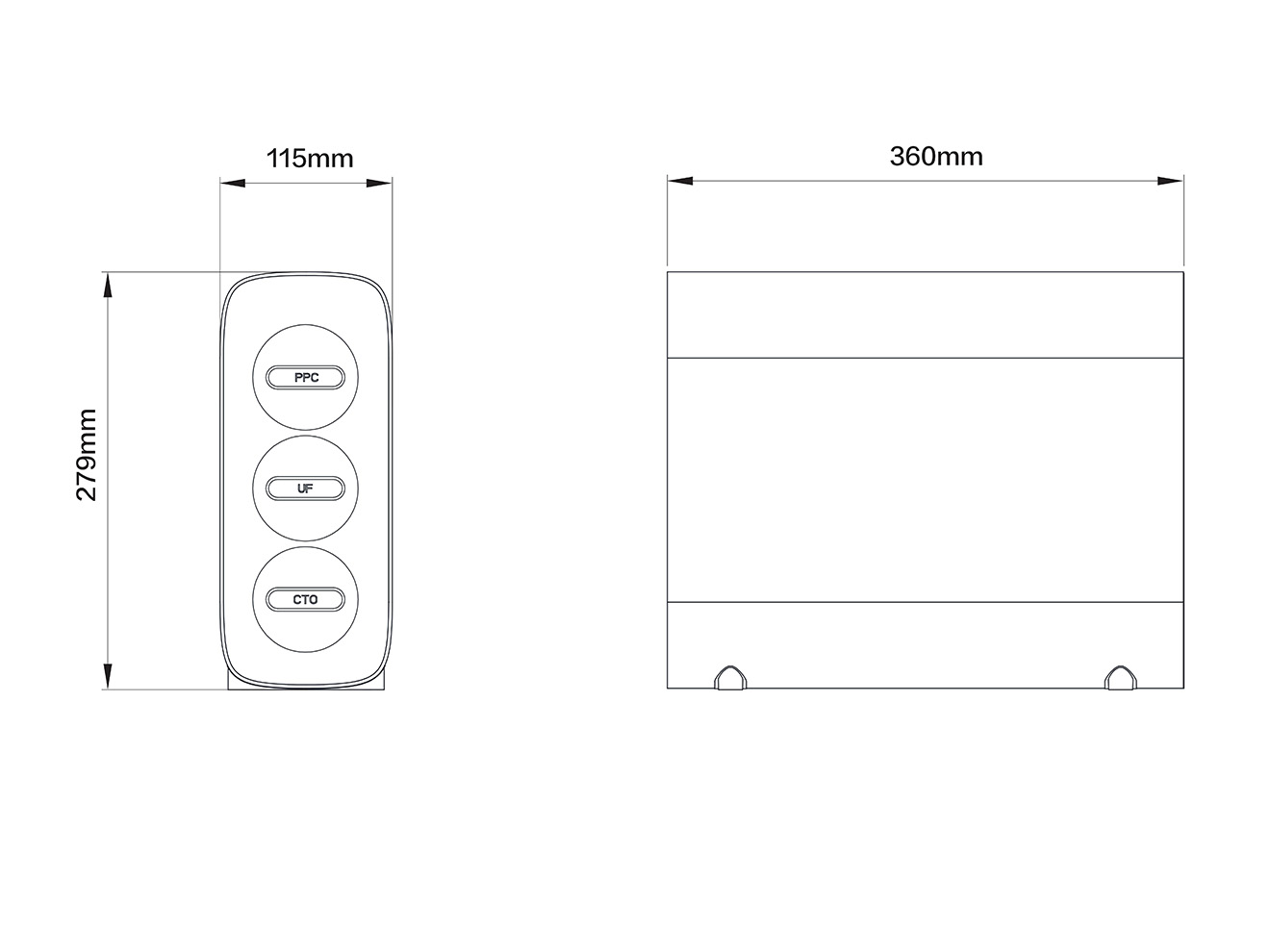

Rated water capacity 2000L,Max 4000L Product dimension 115×360×279mm
Packing dimension/mm (L*W*H) 450×171×385 Net weight 3.4kg
Gross weight 4.7kg Applicable water source Municipal Tap water

Why choose Ultrafiltration Water Purifier

Front-mounted design with horizontally extractable filter element enables extremely fast filter element replacement.

Retains minerals in water to maintain healthy water quality.

The integrated waterway design eliminates the need for welding, has fewer joints, features a wide channel, can resist water hammer, and provides safety against water leakage.

Integrated composite filter element conducts precise filtration layer by layer to ensure the purity of water.

Generates no wastewater, consumes no electricity, operates with water power, being energy-saving and environmentally friendly.

Suitable For Families

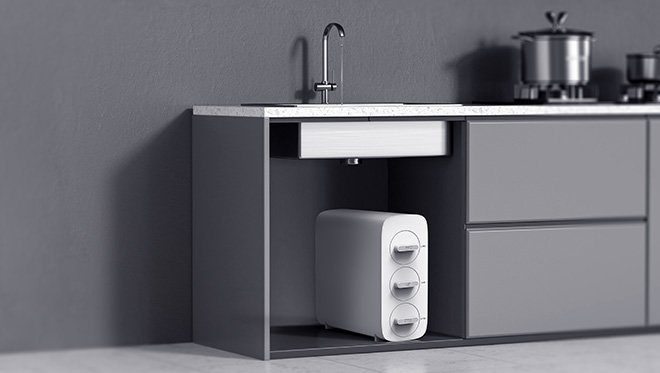

Installation and use of household kitchen cabinets, a dedicated faucet for water purifiers

Home

Frequently Asked Questions

Find possible answers below or contact our sales team​ for any questions

It needs to be installed in a dry and well-ventilated environment and kept away from direct sunlight to prevent the filter element from breeding algae due to light exposure. A suitable water source interface should be reserved, and the inlet water pressure should be ensured to be between 0.1-0.3MPa. If the water pressure is too high, a pressure reducing valve should be installed, and if it is too low, it may affect the water outlet flow. At the same time, there should be a drainage outlet nearby for convenient water drainage, and about 10cm of space should be reserved around the machine for daily maintenance and inspection.

Before the first use, open the inlet water valve and slowly flush the filter element for 15-20 minutes. This process can remove the impurities remaining in the filter element during production and transportation until the outlet water is clear and free of foam. After the flushing is completed, close the faucet, and then it can be used normally.

The filtration precision of the ultrafiltration water purifier is generally 0.01 microns, which can effectively filter large molecular impurities such as bacteria, colloids, and rust in the water, but it cannot remove heavy metal ions and small molecular organic substances. Therefore, in areas with good water quality and no heavy metal pollution and organic pollution, the water filtered by the ultrafiltration can be boiled before drinking. In areas with poor water quality, it is recommended to boil the water before drinking or use it in combination with other deep purification devices.
