NQF-230

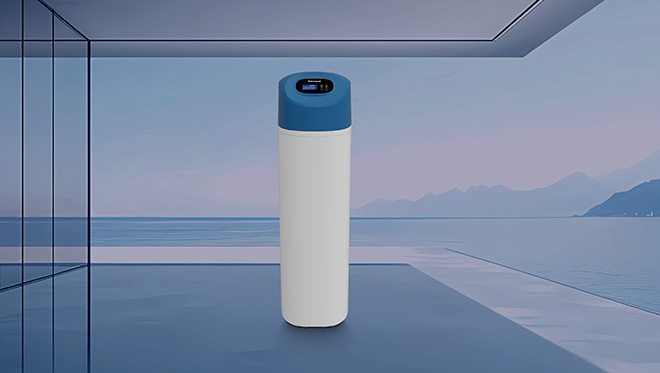

Water Conditioner

The wholehouse central water purifier uses high quality quartz sand and activated carbon, which can filter large particle sediment and rust from the whole house tap water, and adsorb residual chlorine, peculiar colors, odors, organic matters, etc. in the water to ensure water safety. The ceramic seal valve head has fully automatic operation and flushing functions.
Quote NowGet Catalog
Share:

Product Description

The wholehouse central water purifier uses high quality quartz sand and activated carbon, which can filter large particle sediment and rust from the whole house tap water, and adsorb residual chlorine, peculiar colors, odors, organic matters, etc. in the water to ensure water safety. The ceramic seal valve head has fully automatic operation and flushing functions.

Technical Specifications & Models

Rated voltage/power 100-240V / 50-60Hz 18W Water purification flow rate 2m³/h – 3m³/h
Activated carbon filling volume 21L + 4L quartz sand Resin tank specification 1035 3/4″ inlet and outlet water ports, 1/2″ drainage port, dual control valve head for flow/time

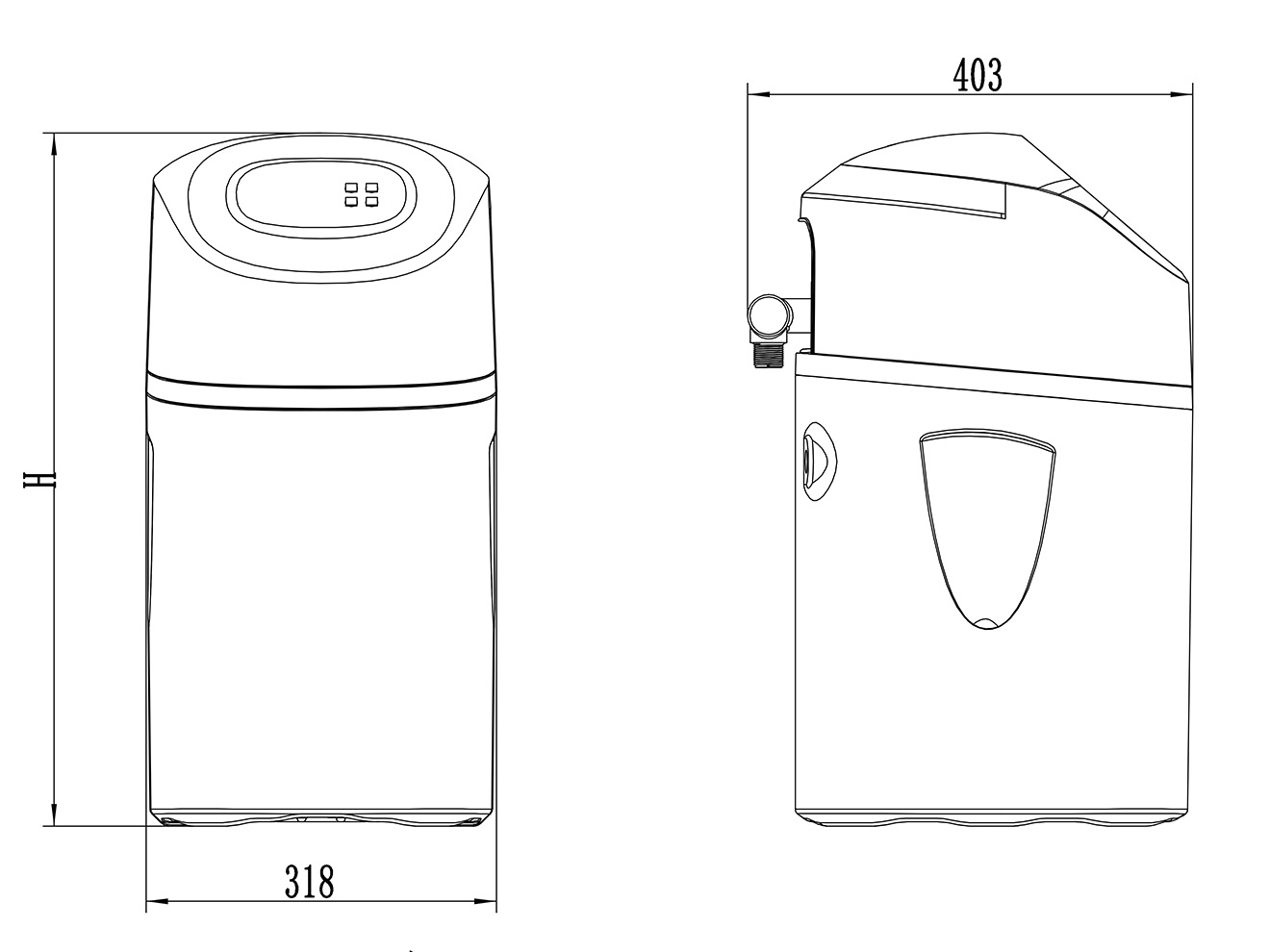

Product size 318*361*1088mm Packaging size 405*380*1150mm
Gross weight 36kg Net weight 31kg

Why choose Water Conditioner

Whole house pretreatment to safeguard the water safety of household appliances.

Ultra large flow rate, suitable for both large and small households.

Fully intelligent operation for peace of mind and worry-free use.

Food grade water contact components, ensuring safety and hygiene.

Suitable For Families

Suitable for household tap water mains.It is recommended to install after the pre-filter

Home

Frequently Asked Questions

Find possible answers below or contact our sales team​ for any questions

Users with basic knowledge of plumbing and electrical installations, and familiarity with their home’s water pipeline layout, may attempt self-installation. However, ensure the following:
Shut off the main water valve and drain residual water from the pipes before starting to ensure safety.
Identify inlet/outlet ports correctly: Connect the purifier according to the product labels—do not reverse the inlet and outlet.Use compatible pipe fittings and sealing materials (e.g., Teflon tape) to ensure tight connections and prevent leaks.For pipe cutting or hot-melt welding (e.g., PP-R pipes), follow standard installation procedures strictly.After installation, slowly reopen the main water valve and inspect all joints and the device casing for leaks. If leaks occur, shut off the water immediately and repair them.Note: If unsure about the installation steps, contact professional plumbers or the product’s after-sales team.

Before initial use, perform a flushing procedure:Set the control valve to “flush mode” and let the machine run its built-in flushing program. This removes residual impurities, debris, and dust from the filter elements and pipelines.The flushing duration varies by product (usually several minutes) — follow the manual’s instructions. Stop when the outflowing water is clear and free of particles.After flushing, switch the control valve to “normal operation mode.” For smart models, set parameters such as time, flushing cycle, and filtered water volume according to the manual to ensure the machine operates as programmed.

Central water purifiers offer comprehensive purification capabilities:Models without ultrafiltration membranes: Use filter materials like activated carbon, KDF media, mineral balls, and maifan stones to remove:Chlorine, chloroform, rust, heavy metals (e.g., lead, mercury), algae, suspended solids, and odors.Treated water meets clarity and cleanliness standards for household use.Models with ultrafiltration membranes: In addition to the above, they can also remove bacteria from water.In summary, central water purifiers effectively eliminate impurities, residual chlorine, certain heavy metals, microorganisms, and other harmful substances, providing higher-quality domestic water.
